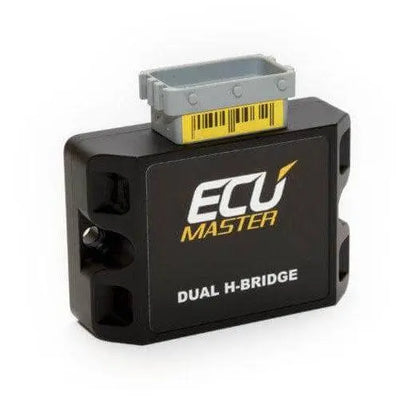

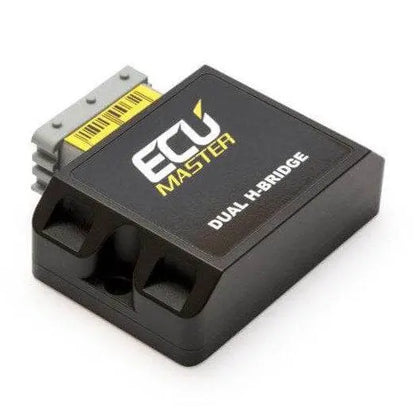

ECU Master Dual H-Brücke
ECUM-HBRIDGE
ECU Master Dual H-Brücke
Das Gerät enthält zwei unabhängige H-Brücken, die mit Überstrom- und Kurzschlussschutz ausgestattet sind
10A Dauerstrom und 30A Spitzenstrom. H-Brücken können über Geräteeingänge oder CAN gesteuert werden
Busmeldungen.
Spannungsbereich: 6V - 28V (12V und 24V Fahrzeuginstallationen)
Ausgangsstrom: 10 A kontinuierlich, 30 A Spitze
4 analoge (0-5V) / digitale (35Hz - 200Hz PWM) Eingänge
Ausgangs-PWM: 12 Bit 3,9 kHz
Das Gerät kann verwendet werden, um eine geschützte Low-Side- (GND) oder High-Side- (VBat) Versorgung unabhängig zu versorgen
jeweils 4 Ausgänge zur bidirektionalen DC-Motorsteuerung. Der Low-Side-Ausgang kann per PWM moduliert werden
Brückenbasis. Häufige Anwendungsfälle können sein:
Elektrische Fensterhebersteuerung
Elektronischer Drosselklappenverstärker für hohe Ströme
