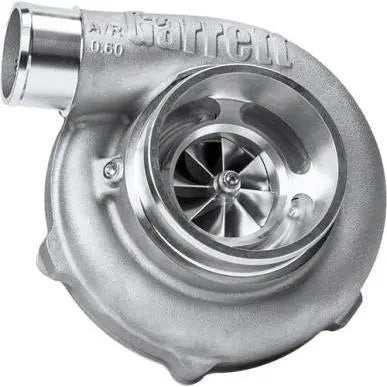

Garrett GTX3071R GEN 2 Turboladereinheit
856801-5006S
PRODUKTEIGENSCHAFTEN:
Fortschrittliche Aerodynamik und Garrett GTX GEN2-Kompressorrad mit ultrahohem Durchfluss erhöhen den PS-Bereich.
Verdichterrad aus geschmiedetem Billet-Aluminium
Zweifach kugelgelagerte CHRA-Rotationsbaugruppe
PRODUKTSPEZIFIKATIONEN:
Verdichterrad-Induktor: 54 mm
Verdichterrad-Exducer: 71 mm
Kompressor Radzierblende: 58
Kompressorgehäuse A/R: 0,60
Turbinenrad-Induktor: 60 mm
Turbinenradaustreiber: 55 mm
Turbinenradverkleidung: 84
| Kompressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core-Referenzdaten | Induktor | Exducer | Trimmen | A/R | Induktor | Exducer | Trimmen | |
| GTX3071R Standardrotation | 54mm | 71mm | 58 | 0,60 | 60mm | 55mm | 84 | |
| Anmerkungen: | Montagesatz PN | Super-Core-PN | Turbinen-Kit PN | A/R | Einlass | Auslauf | Wastegate | Geteilt |
| Bausatz PN Enthält Super Core und Turbine Kit | 856801-5006S | 851154-5002S | 740902-0009 | 0,63 | T3 | V-Band | Freefloat | N |
| 856801-5005S | 851154-5002S | 740902-0008 | 0,82 | T3 | V-Band | Freefloat | N | |
| 856801-5004S | 851154-5002S | 740902-0007 | 1.06 | T3 | V-Band | Freefloat | N | |
| 856801-5018S | 851154-5002S | 740902-0036 | 0,61 | V-Band | V-Band | Freefloat | N | |
| 856801-5017S | 851154-5002S | 740902-0035 | 0,83 | V-Band | V-Band | Freefloat | N | |
| 856801-5016S | 851154-5002S | 740902-0034 | 1.01 | V-Band | V-Band | Freefloat | N | |
Bitte wählen Sie oben Ihre AR-Größe und Gehäuseoptionen aus. Wenn Sie weitere Informationen benötigen oder Hilfe bei der Auswahl des richtigen Turboladers für Ihre Anforderungen benötigen, rufen Sie uns bitte an oder senden Sie uns eine E-Mail. Wir beraten Sie gerne!
