VW 1.8T 20V Turbo 4 Cyl 8.5:1 82.5mm -12.2cc JE Pistons Forged Pistons JE-295742
JE-295742
Product specifications
| Attribute | Value |
|---|---|
| Bore - Actual | 82.50 mm |
| Bore - Oversize | 1.50 mm |
| Compression Height | 32.66 mm |
| Compression Ratio - Actual | 8.5:1 |
| Deck Clearance | 0.14- mm |
| Dome Volume | -12.2 cc |
| Piston Pin Diameter | 20.00 mm |
| Ring Set Included | JG1004-3250 |
| Stroke | 86.40 mm |
| Weight - Nominal | 307 g |
PLEASE CONTACT US FOR A ACCURATE LEAD TIME.

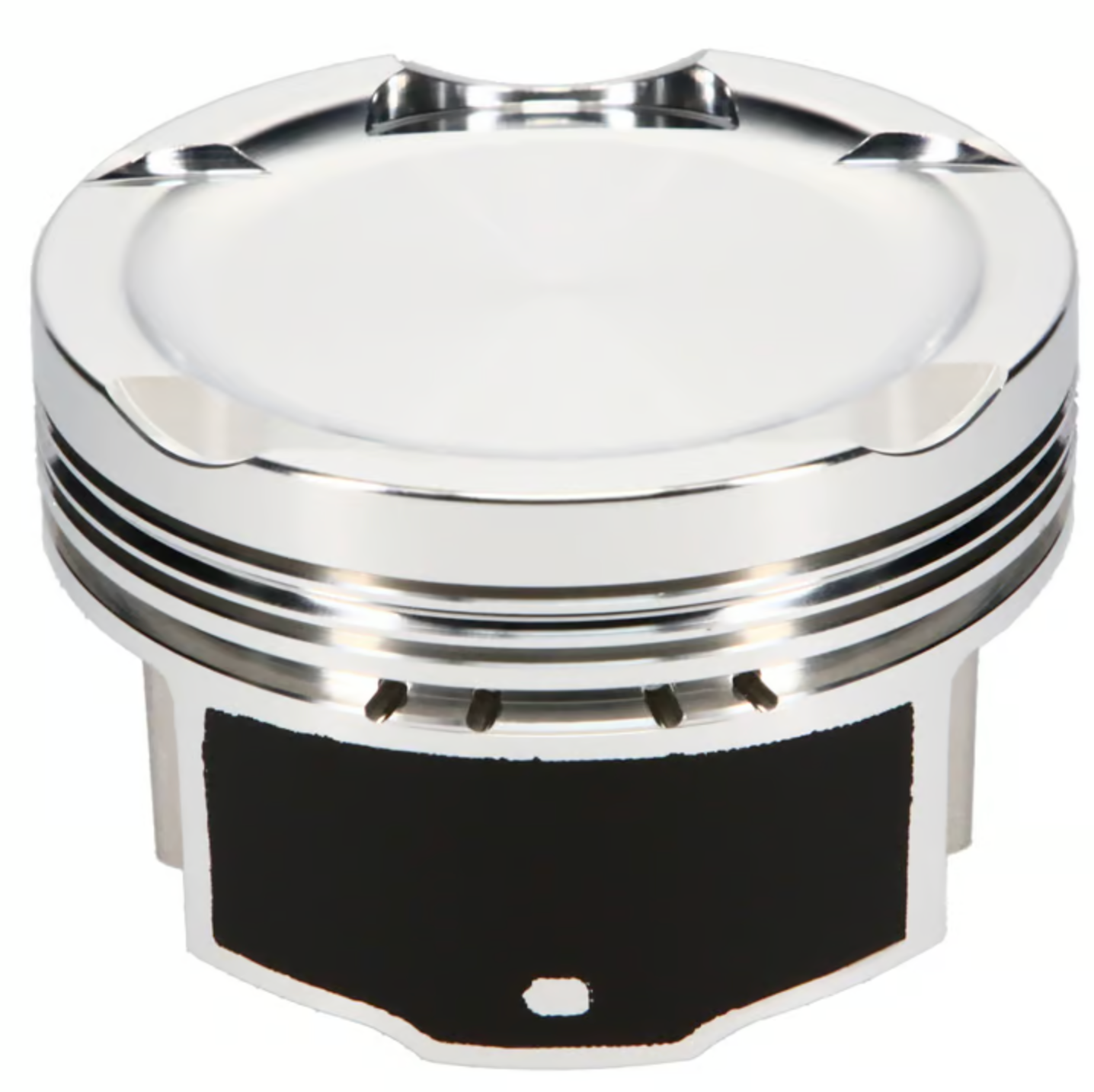

Image is a stock image.
