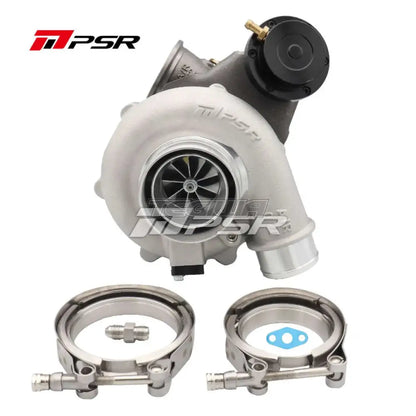

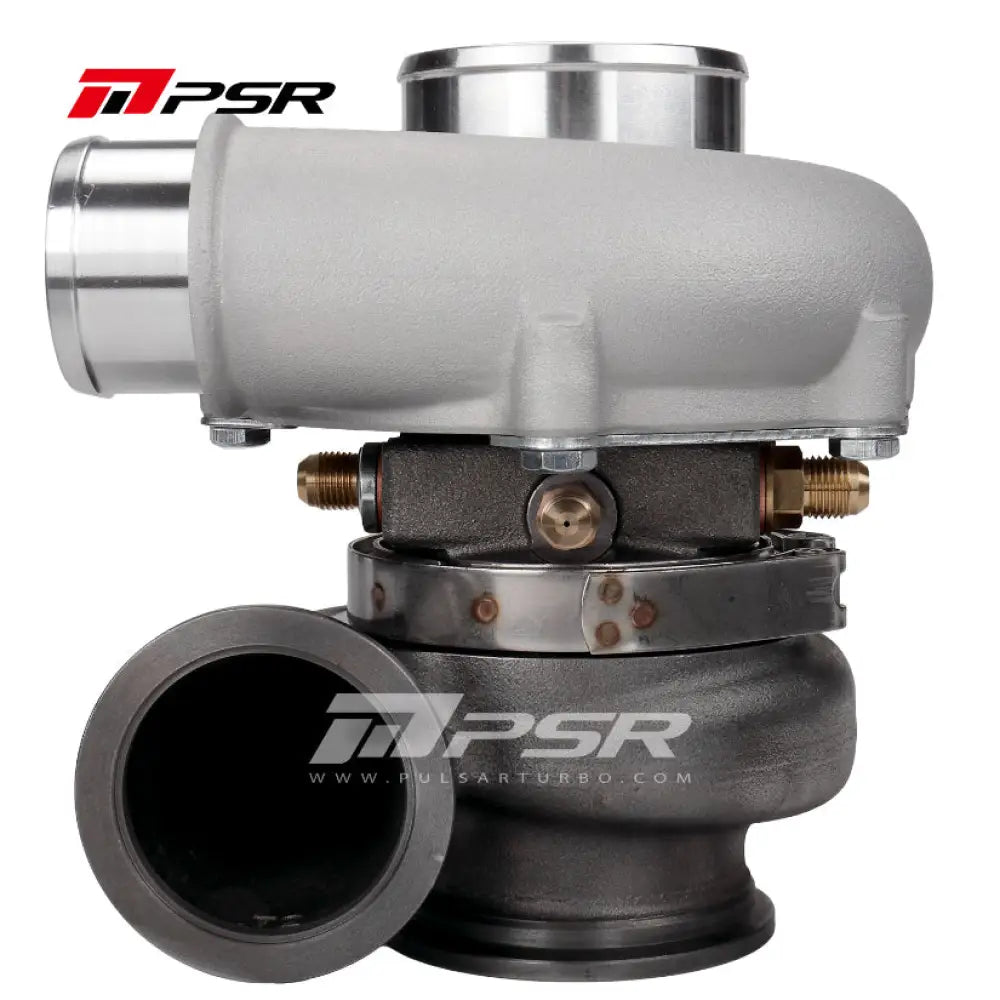

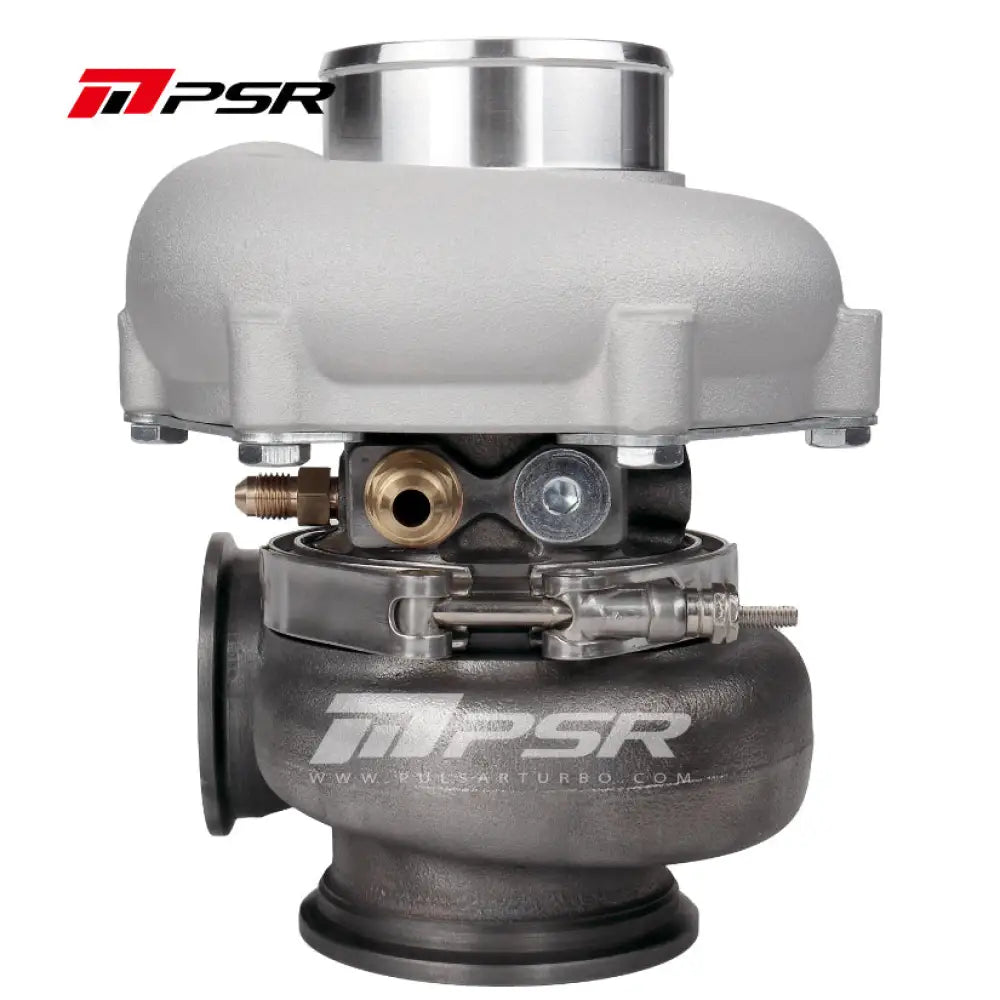

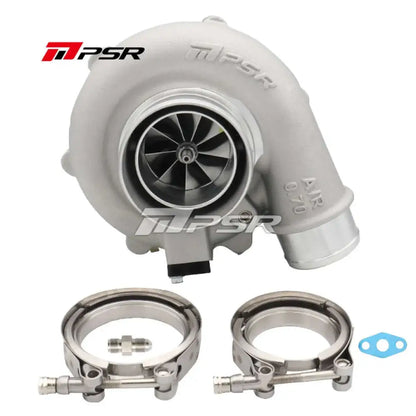

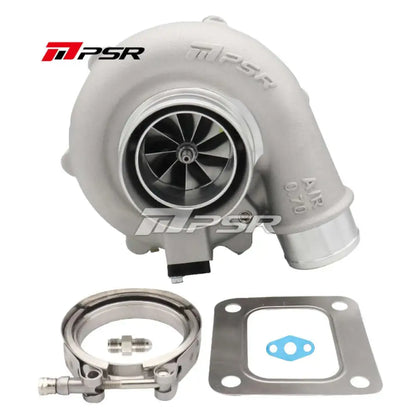

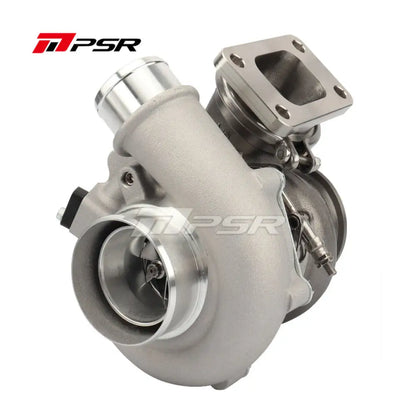

Pulsar PSR4849G 25-550 Turbocharger
PSR-102125131
Pulsar PSR4849G
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended displacement 1.6 to 3.0 litres with power outputs up to 550hp possible.
- Dual Ceramic ball bearing system provides optimal turbo response &
better durability by reducing play in the shaft. - 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

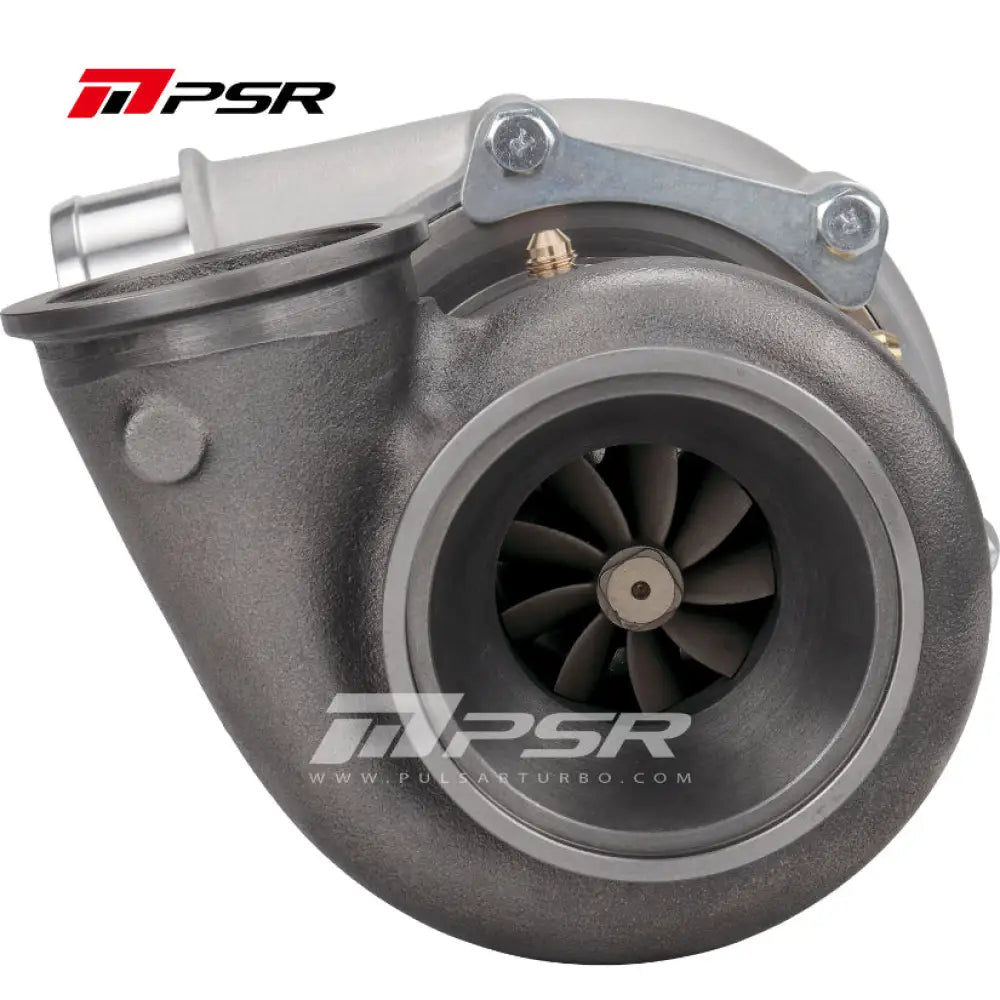

- 9 Blade G-Aero Inconel 713c Turbine Wheel

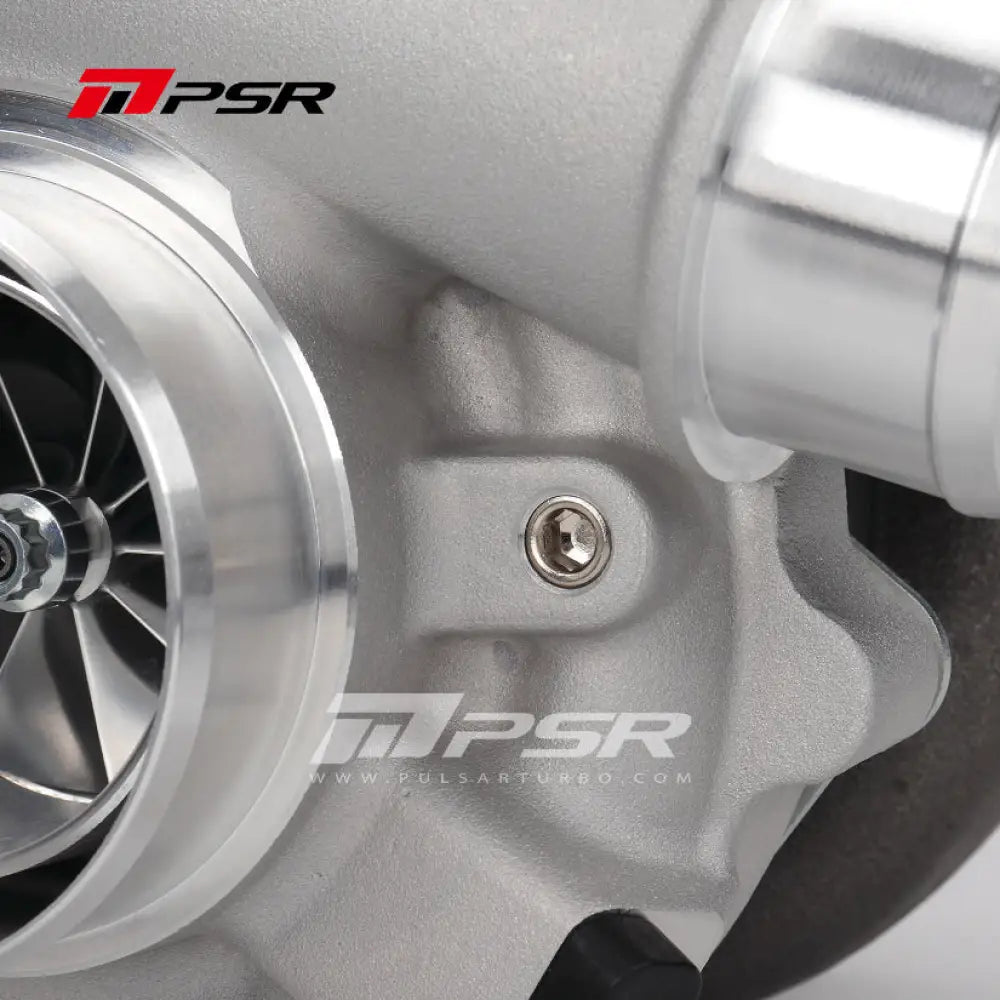

- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

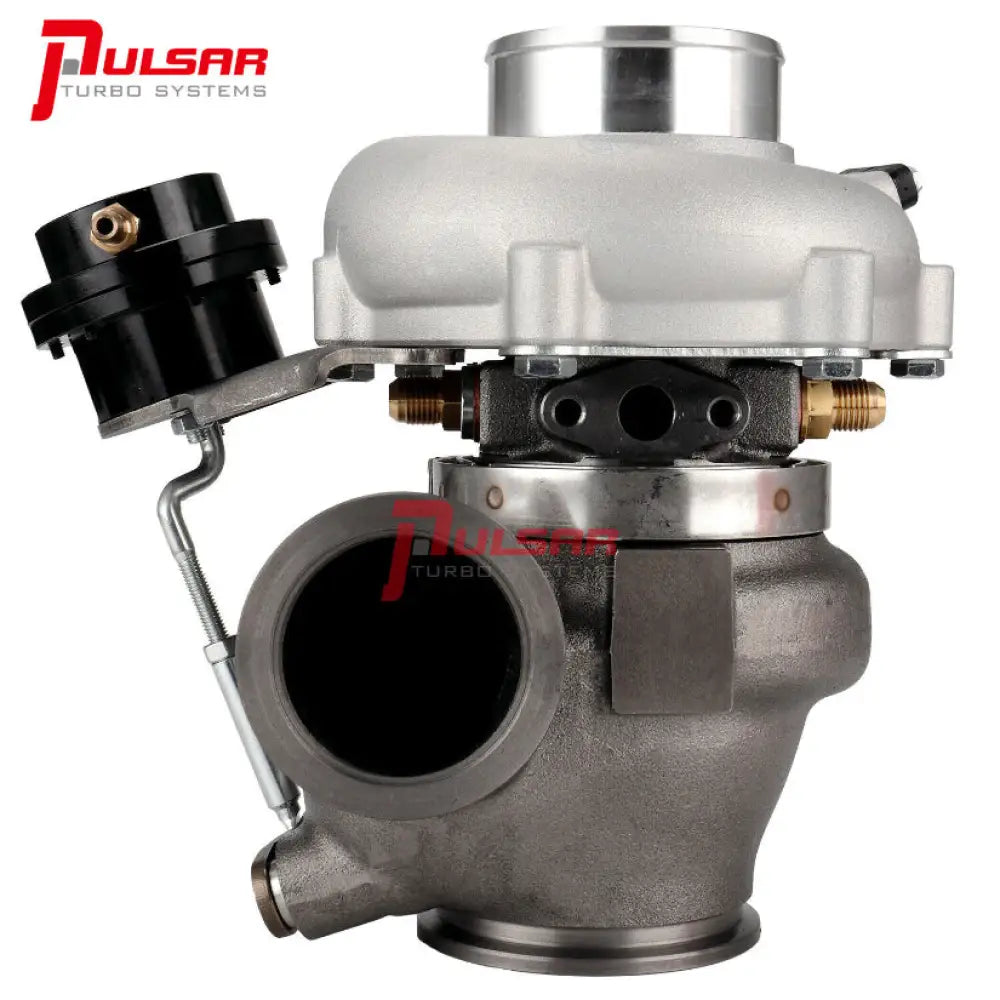

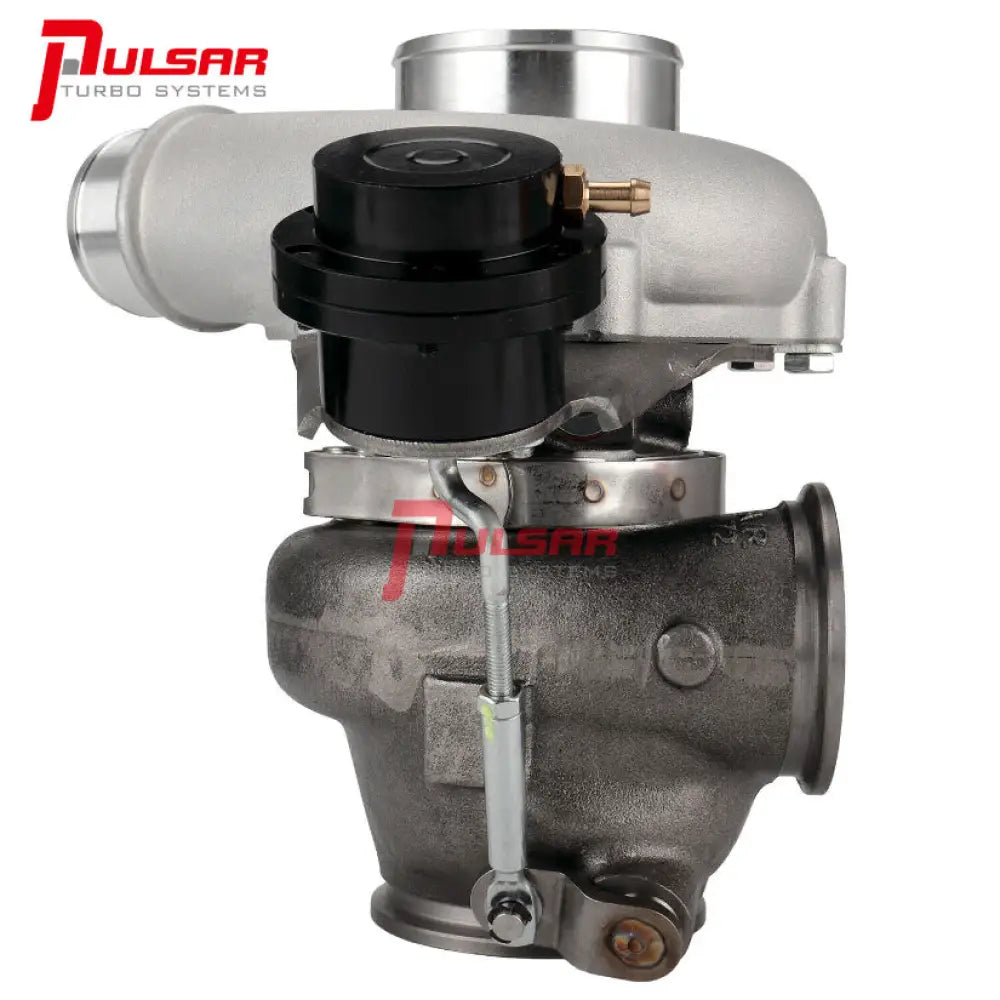

- Internally wastegated units come with Billet Actuator(12-14 psi)
SPEC
- Compressor Wheel: 48*60mm
- Turbine Wheel: 54*49mm

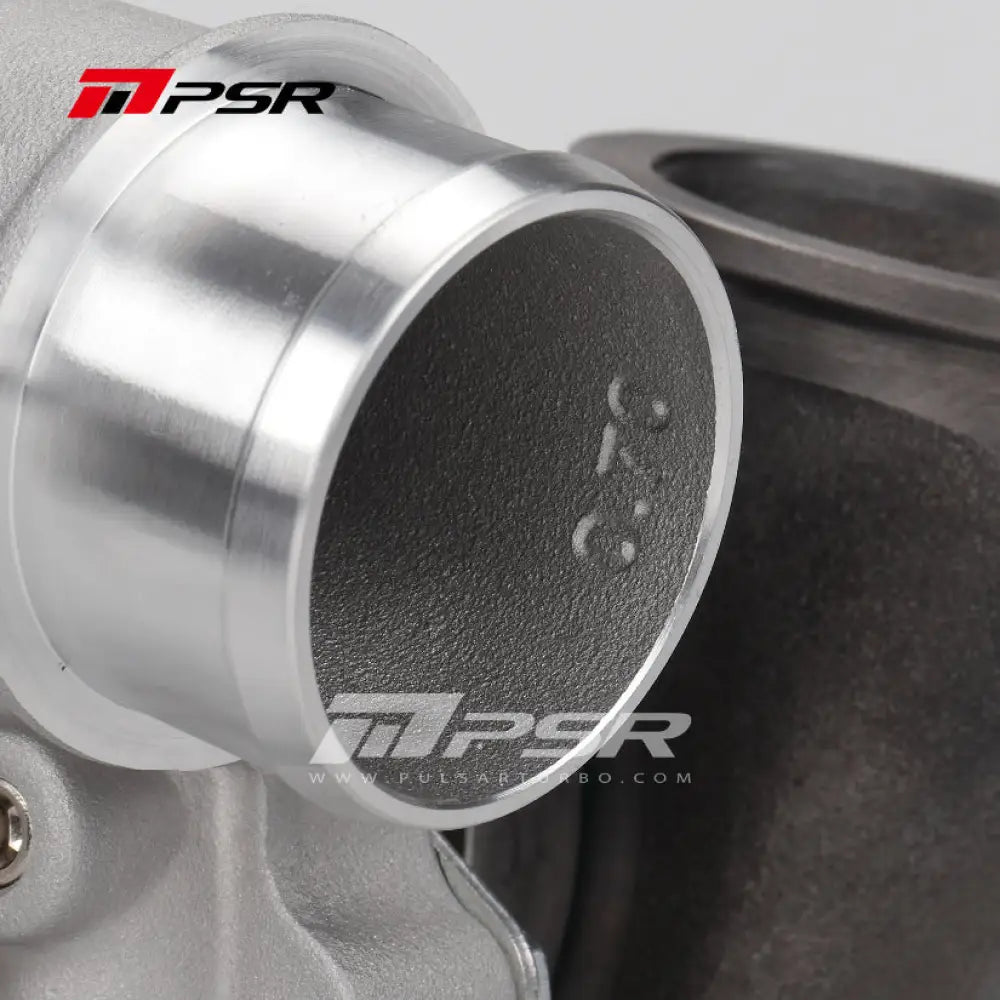

- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: 2.5″ V-Band
- Turbine Outlet: 3″ V-Band
- Water Ports: -6AN
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange

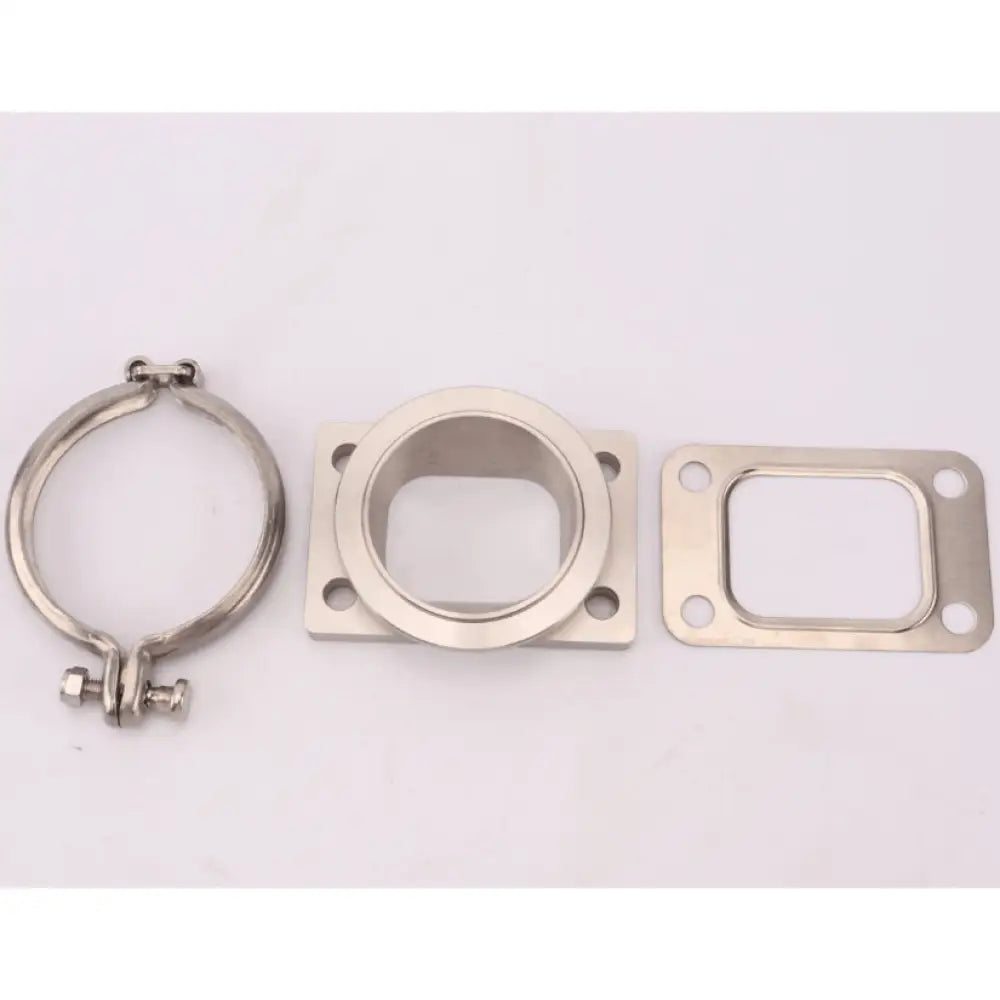

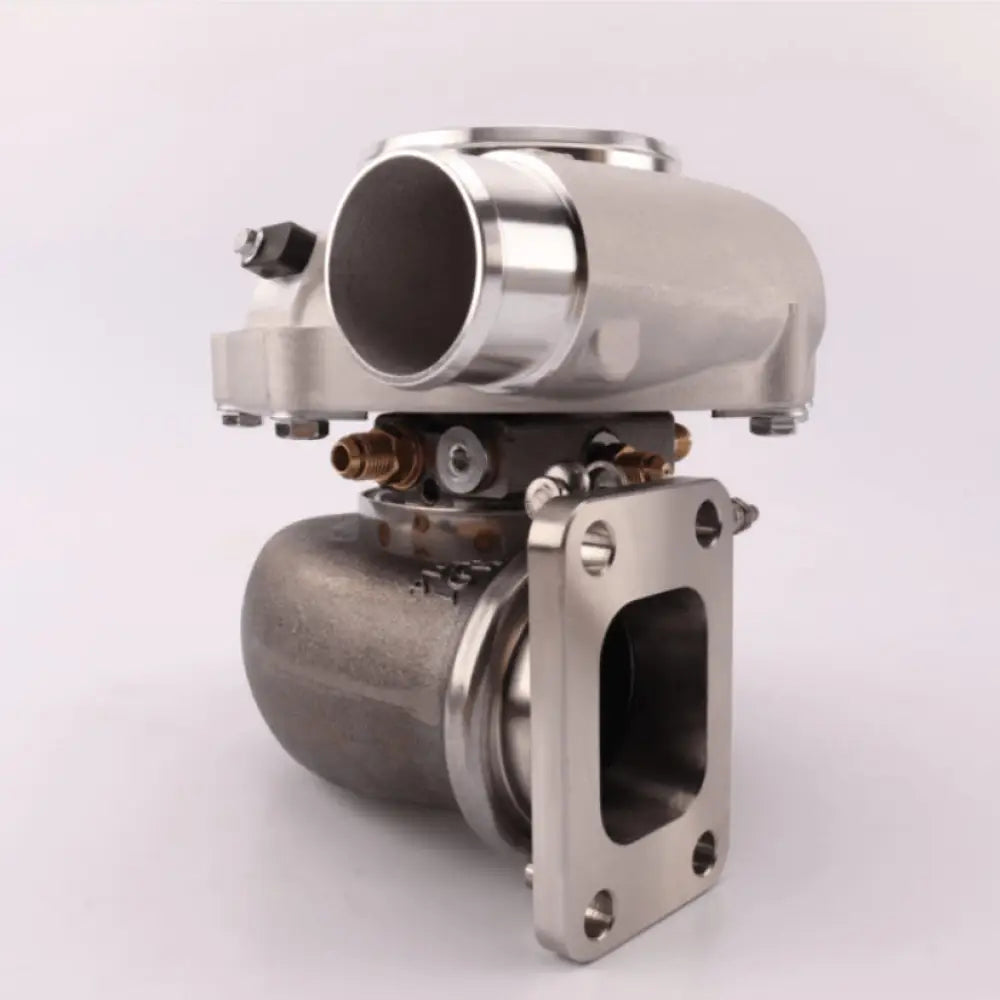

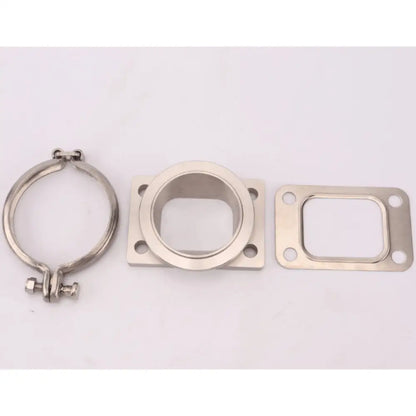

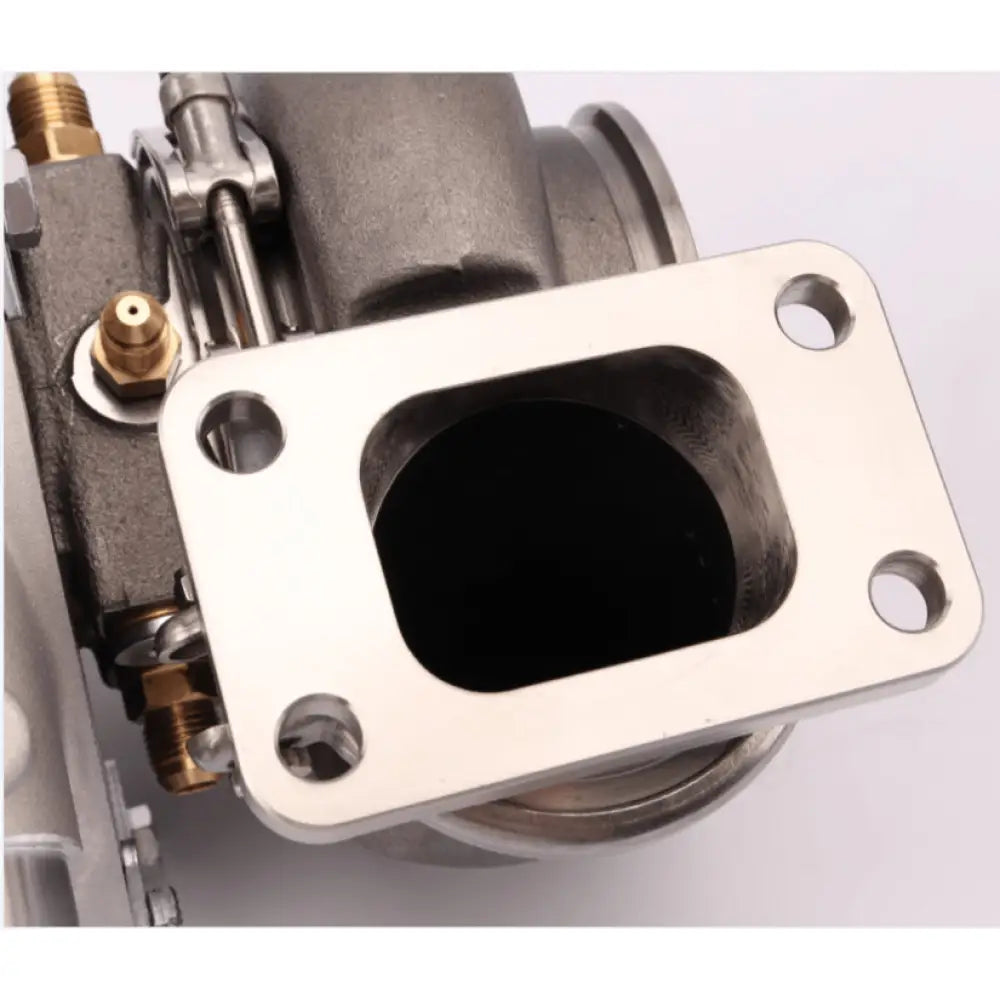

- T3 option is supplied with a V band adaptor as shown in images.
- Internally gated units come with billet actuator.
It's strongly recommended to run water cooling to aid reliability.
